• 11.5" day/night rearview mirror
• AM/FM stereo-inc: digital clock, (2) speakers
• Auxiliary pwr point
• Black instrument cluster w/black gauges & white graphics
• Black vinyl full floor covering
• Black vinyl steering wheel
• Color-coordinated cloth sun visors-inc: LH pocket, RH mirror insert
• Color-coordinated door trim panel-inc: armrest, grab handle, reflector
• Color-coordinated instrument panel w/glove box, (4) air registers w/positive shutoff, ashtray & cigar lighter & (4) upfitter switches
• Color-coordinated molded cloth headliner
• Color-coordinated scuff plates
• Dash-top tray
• Door activated dome lamp w/delay, I/P switch operation
• Dual color-coordinated coat hooks
• Dual front grab handles
• Dual map lights
• Front passenger roof ride handles
• HD vinyl reclining bench seat w/integrated armrest
• Inside hood release
• Secondary glove box

• (2) front tow hooks
• 115-amp HD alternator
• 141" wheelbase
• 19.5" x 6" argent painted steel wheels
• 225/70R19.5F all-season BSW tires
• 4.88 axle ratio
• 7-wire trailer tow harness w/relays, blunt cut & labeled
• 78 amp/hr battery
• Dual rear wheels
• Front/rear stabilizer bars
• HD gas shock absorbers
• Pwr 4-wheel anti-lock disc brakes w/hydro boost
• Pwr steering w/steering damper
• Rear auxiliary springs
• Rear wheel drive
• Stationary elevated idle control (SEIC)
• Wide-axle twin-coil mono-beam front suspension w/coil springs

• Child tethers on all passenger seats
• Color-coordinated 3-point safety belts w/front outboard height adjustment
• Driver/front passenger airbag
• Dual-note electric horn
• Passenger side airbag deactivation switch
• Pwr 4-wheel anti-lock disc brakes w/hydro boost

6.4L OHV V8 POWER STROKE DIESEL ENGINE

• 135-amp HD alternator
• dual 78 amp/hr 750 CCA battery
• I/P air filter minder
• turbo boost gauge *Includes Winter Front Grille Cover in AK
• CO
• ID
• IA
• ME
• MI
• MN
• MT
• NH
• NY
• ND
• SD
• VT
• WI
• WY*

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 135
• Maximum Alternator Capacity (amps): 115
• Maximum Alternator Watts: - TBD -
• Maximum Alternator Watts: 1725
• Cooling System
• Total Cooling System Capacity (qts): 30.5
• Total Cooling System Capacity (qts): 27.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 13660
• Curb Weight - Front (lbs): 4314
• Curb Weight - Front (lbs): 3705
• Curb Weight - Rear (lbs): 3086
• Curb Weight - Rear (lbs): 2880
• Gross Vehicle Weight Rating Cap (lbs): 17950
• Gross Combined Wt Rating (lbs): 26000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2400
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17400
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4350
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4550
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 13660
• Axle Type - Front: Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 13660
• Axle Ratio (:1) - Rear: 4.88
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.53 x 0.47
• Rear Brake Rotor Diam x Thickness (in): 15.35 x 0.47
• Tires
• Front Tire Order Code: TFB
• Rear Tire Order Code: TFB
• Front Tire Size: 225/70R19.5F
• Rear Tire Size: 225/70R19.5F
• Front Tire Capacity (lbs): 3415
• Rear Tire Capacity (lbs): 3415
• Revolutions/Mile @ 45 mph - Front: 653
• Revolutions/Mile @ 45 mph - Rear: 653
• Wheels
• Front Wheel Size (in): 19.5 x 6.0
• Rear Wheel Size (in): 19.5 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 18.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 42.3
• Turning Diameter - Wall to Wall (ft): 44.2
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40.0
• Fuel Tank Location: Aft-Axle
• Exterior Dimensions
• Wheelbase (in): 140.8
• Length, Overall w/o rear bumper (in): 226.0
• Width, Max w/o mirrors (in): 93.6
• Height, Overall (in): 79.6
• Overhang, Front (in): 37.6
• Overhang, Rear w/o bumper (in): 47.6
• Front Bumper to Back of Cab (in): 118.4
• Cab to Axle (in): 60.0
• Cab to End of Frame (in): 107.6
• Ground to Top of Frame (in): 33.0
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 7.9
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.4
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Summary

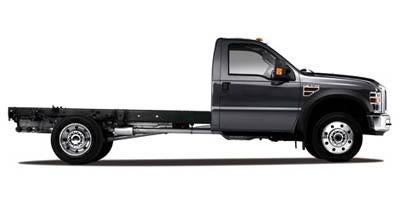

• Vehicle Name: Ford Super Duty F-550 DRW
• Body Style: Reg Cab
• Body Code: 141" WB
